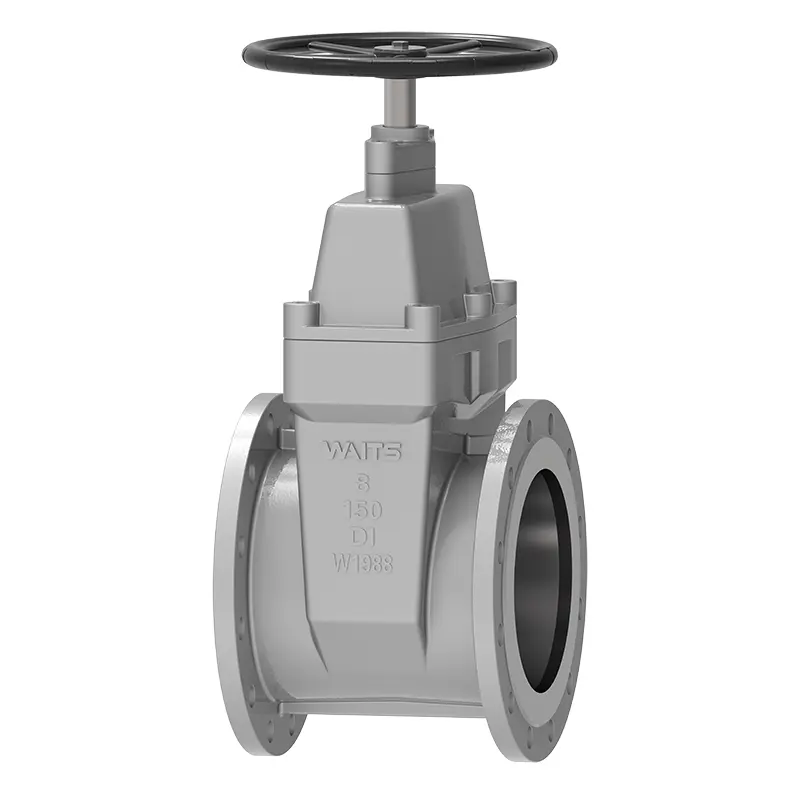

Flange End Resilient Seat Gate Valve

Waits is your good choice for high-quality and cost-effective flange end resilient seat gate valves. We were founded in the United States in 1994 and are a large valve manufacturer and integrated supplier. We established a branch in China in 2008 and set up our global headquarters in Wenzhou. This gate valve has excellent sealing performance and durability, is suitable for a variety of fluids, and is deeply loved by water supply and wastewater treatment units.

Send Inquiry

Product Description

Waits has 30 years of experience in valve manufacturing. We know that in order for products to win the market, in addition to favorable prices, they also need perfect quality.
Our flange end resilient seat gate valve is designed for flow control and isolation in various fluid systems. It adopts a resilient valve seat mechanism design to ensure tight sealing performance and is not prone to leakage. At the same time, the overall design is sturdy and reliable, and can adapt to medium pressure and temperature conditions without affecting performance at work.
This gate valve is widely used in industry and is commonly found in water supply management, wastewater treatment and other applicable industrial applications.

Implementation Standards

Design standards	API603, ASME B16.34, DIN 3352, EN1984 BS5163, AWWA C509 /C515
Flange standards	ASME B 16.5, ASME B16.47, DIN2543, EN1092-1, DIN2545;
Connection methods	RF
Testing and acceptance	API598, DIN 3230, EN 12569
Structural length	ASME B16.10, DIN3352-F4/F5, EN 558-1
Pressure and temperature levels	ASME B16.34、
Low leakage standards	ISO 15848-1, API 622
Anti-corrosion design	NACE MR 0103, NACE MR 0175

Application

Size	NPS 2″ ~ NPS 64″ DN50~ DN1600
Pressure range	CL125~ CL300 PN10~ PN64
Temperature range	；-10°C ~ +100°C
Application range	Tap water, sewage, construction, petroleum, chemical industry, food, medicine, textile, electricity, shipbuilding, metallurgy, energy system, etc.
Drive mode	Turbine, pneumatic, electric
Valve body/valve cover	DI WCB, CF8, CF8M, CF3, CF3M, 4A, 5A, 6A),
Valve plate/valve seat	DI, DI+EPDM, WCB, WCB+EPDM CF8, CF8M, CF3, CF3M
Valve stem	F6A F304 F316 F51 F53 Monel K500
Valve stem nut	Copper Alloy
Packing	Flexible graphite, graphite asbestos packing, polytetrafluoroethylene...

Performance Features

1. Flat-bottomed valve seat
After the traditional gate valve is washed with water, foreign objects such as stones, wood blocks, cement, paper scraps, and debris accumulate in the groove at the bottom of the valve, which can easily cause leakage. The bottom of the flange end resilient seat gate valve adopts the same flat bottom design as the water pipe, so it is not easy to have such debris accumulation, allowing the fluid to flow smoothly.
2. Overall rubber encapsulation
Use high-quality rubber for overall internal and external rubber encapsulation, actively introduce advanced rubber vulcanization technology in the industry, accurate size, reliable connection, not easy to fall off and good elastic memory.
3. Corrosion resistance
Powder epoxy resin coating can prevent corrosion and rust of the valve body, and is more suitable for sewage systems. 4. Not easy to break
In the past, traditional cast iron gate valves were easy to break if they were hit, collided or overlapped by foreign objects. The body of the flange end resilient seat gate valve is changed to ductile iron, which has a certain guarantee in strength.
5. Three "O" type
The valve stem adopts a three "O" ring seal design, which can reduce friction resistance during opening and closing, reduce water leakage, and can replace the seal without stopping water.
6. Conducive to drinking
Since the inside of the valve body is coated with non-toxic epoxy resin, the inner and outer surfaces of the gate valve are completely covered with rubber, and there will be no rust or corrosion, so it can be used for drinking.
7. Precision casting valve body
The valve body is precision cast, with precise geometric dimensions, and there is no need to worry about damage to the sealing performance.
8. Light weight
Ductile casting not only has a certain strength, but also weighs about 20% to 30% less than traditional gate valves.
