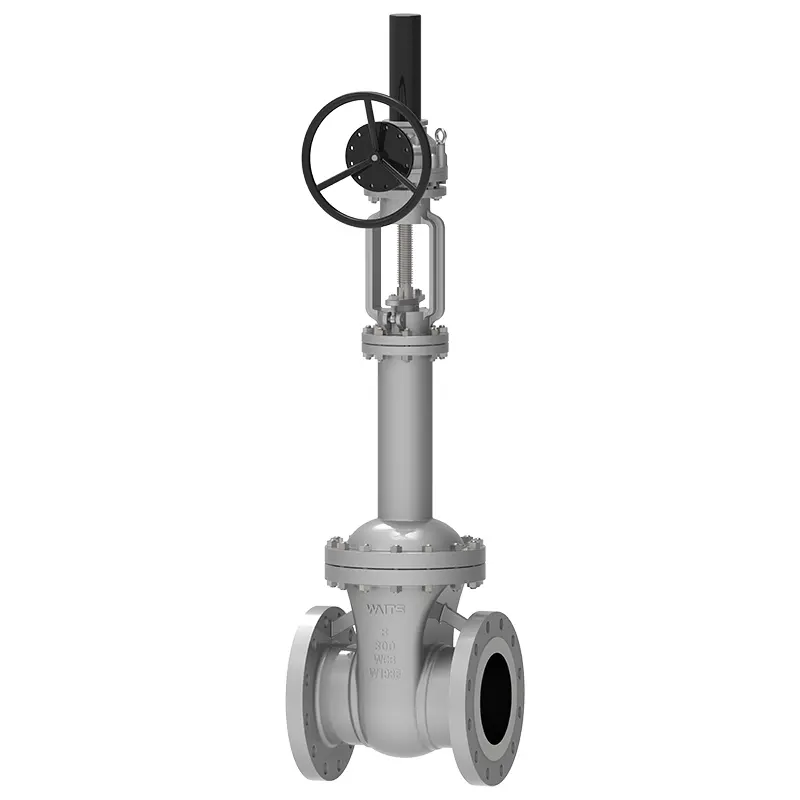

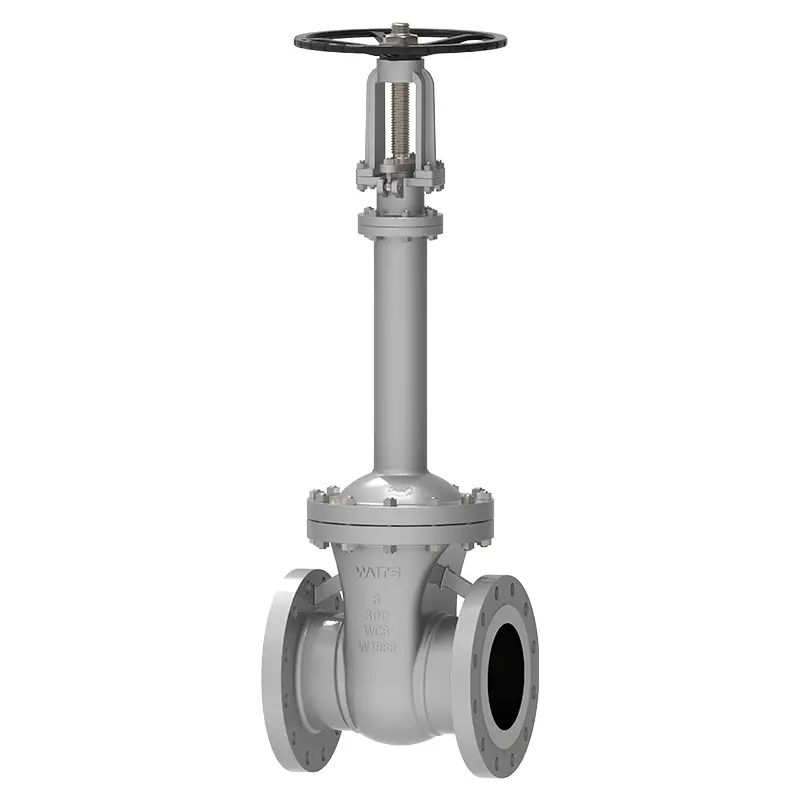

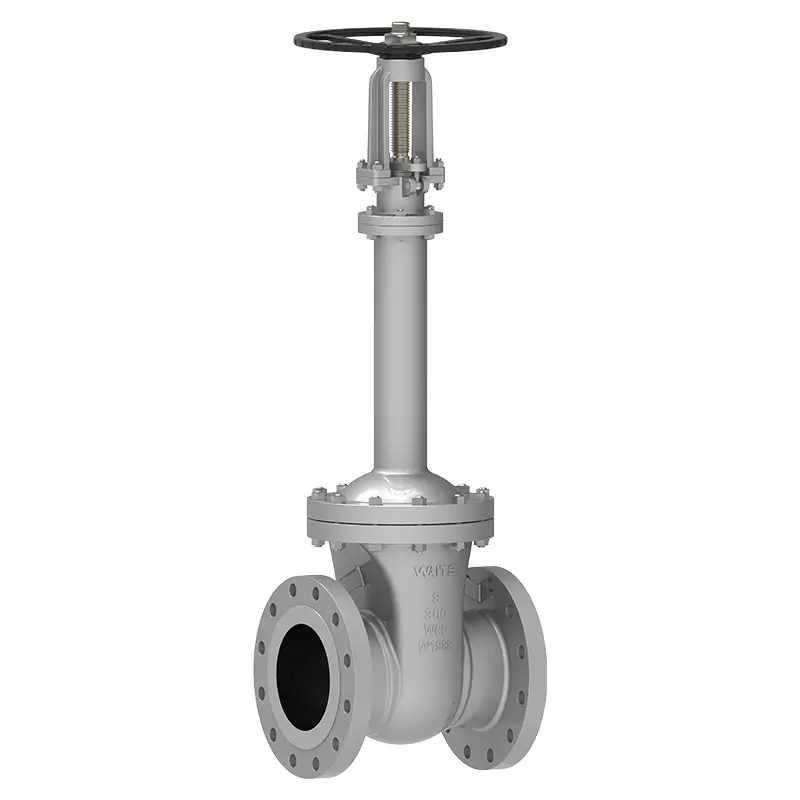

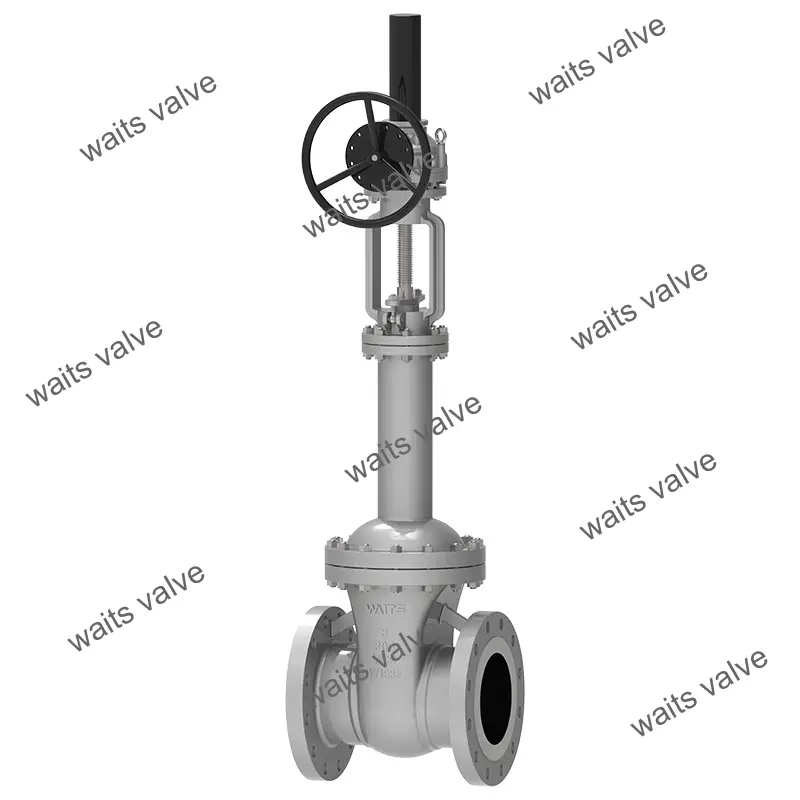

Bellows Gate Valve

If you are looking for high-quality bellows gate valve, Waits can be your trusted choice. As an experienced valve manufacturer and supplier in the industry, the bellows gate valve we produce is widely used in urban heating, gas transmission, steam pipelines and large-scale water conservancy projects, and has been recognized by customers in many countries in Europe and the Middle East.

Send Inquiry

Product Description

The bellows gate valve forms a metal barrier between the fluid medium and the atmosphere through automatic rolling welding, which is a design that protects the valve stem from leakage.
The bellows structure is used inside, and the lower end of the stainless steel bellows is welded to the valve stem to prevent the process fluid from corroding the valve stem. The other end is placed between the valve body and the valve cover to form a static seal. The double sealing design is more secure. If the bellows fails, the valve stem packing will also avoid leakage.
The bellows is welded to the valve stem to maintain stable operating performance and avoid valve stem vibration caused by valve plug vibration. The bellows gate valve is most suitable for pipelines with steam, flammable, explosive, thermal oil, high purity, toxic and other media.

Implementation Standards

Design standards	DIN3356，ASME B16.34
Flange standards	DIN2543-2545, ASME B16.5, ASME B16.47
Connection methods	RF,
Testing and acceptance	DIN3230, API 598
Structural length	DIN3203, ASME B16.10
Pressure and temperature ratings	ASME B16.34、
Fireproof test	API607, API6FA
Low leakage standards	ISO 15848-1, API 622
Anti-corrosion design	NACE MR 0103, NACE MR 0175

Application

Size	NPS 2″~ NPS 24″ DN50~ DN600
Pressure range	CL150~CL1500 PN10 ~ PN260
Temperature range	-20℃~350℃
Application range	Tap water, sewage, construction, petroleum, chemical industry, food, medicine, textile, electricity, shipbuilding, metallurgy, energy system, etc.
Drive mode	Handwheel, bevel gear, electric, pneumatic, etc.
Valve body/valve cover	(A216 WCB, WC6, WC9, LCB, CF8, CF8M, CF3, CF3M, 4A, 5A, 6A), Alloy 20, Monel...
Sealing surface	Body, body cladding iron-based alloy, cladding hard-based alloy
Valve stem	F6A F304 F316 F51 F53 Monel K500
Valve stem nut	Copper Alloy
Packing	Flexible graphite, graphite asbestos packing, polytetrafluoroethylene...

Performance Features

Advantages
1. The bellows gate valve has a reasonable structure, reliable sealing performance and beautiful appearance;
2. The sealing surface is welded with Co-based hard alloy, which is wear-resistant, corrosion-resistant, friction-resistant and has a long service life;
3. The valve stem is tempered and nitrided on the surface, which has good corrosion and friction resistance;
4. The double sealing design is adopted, and the performance is more reliable;
5. The valve stem lifting position indication is more intuitive;
6. The material of the parts, flange and butt welding number size can be reasonably selected according to the actual situation or user requirements to meet various engineering needs.

Features:
1. The double sealing design is a bellows + valve stem packing. If the bellows fails, the valve stem packing will also avoid leakage;
2. No fluid loss and low energy loss;
3. Long service life, which helps to reduce the number of maintenance;
4. The gas medium valve seat adopts PTFE soft sealing material, which helps to improve the sealing of the bellows gate valve;
5. The valve seat adopts a conical hard seal, which is resistant to high temperature and has good airtightness;
