Trunnion Ball Valve

Waits Valve, with its complete production line, can provide you with trunnion ball valve products. We have rich experience in valve design and manufacturing, insisting on product quality and related services, preferential product prices and timely delivery. We fully consider different applications and adopt different manufacturing standards, such as API6D/ ISO17292/BS5351, etc.

Send Inquiry

Product Description

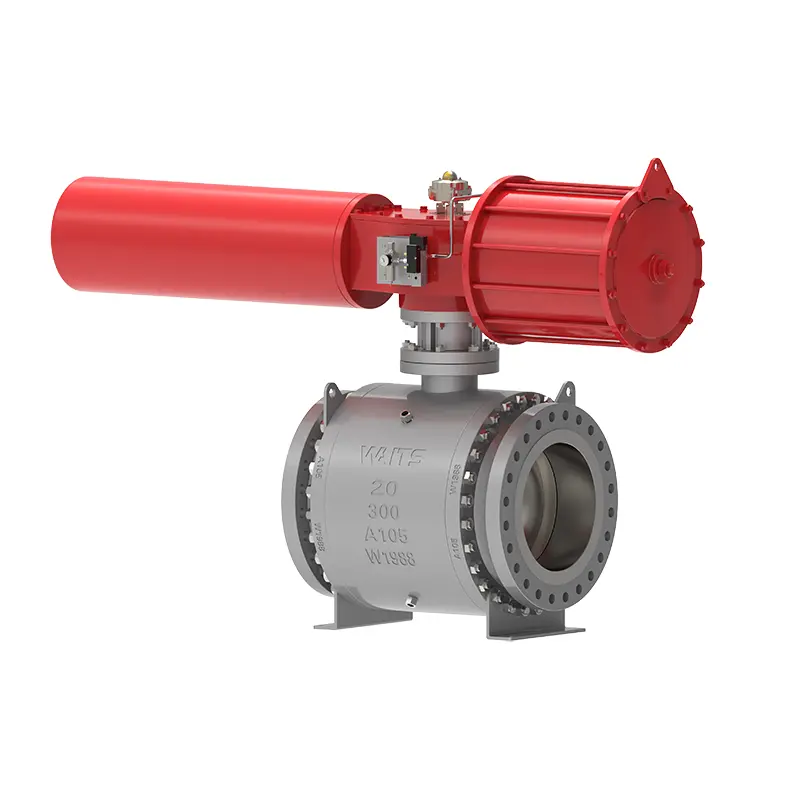

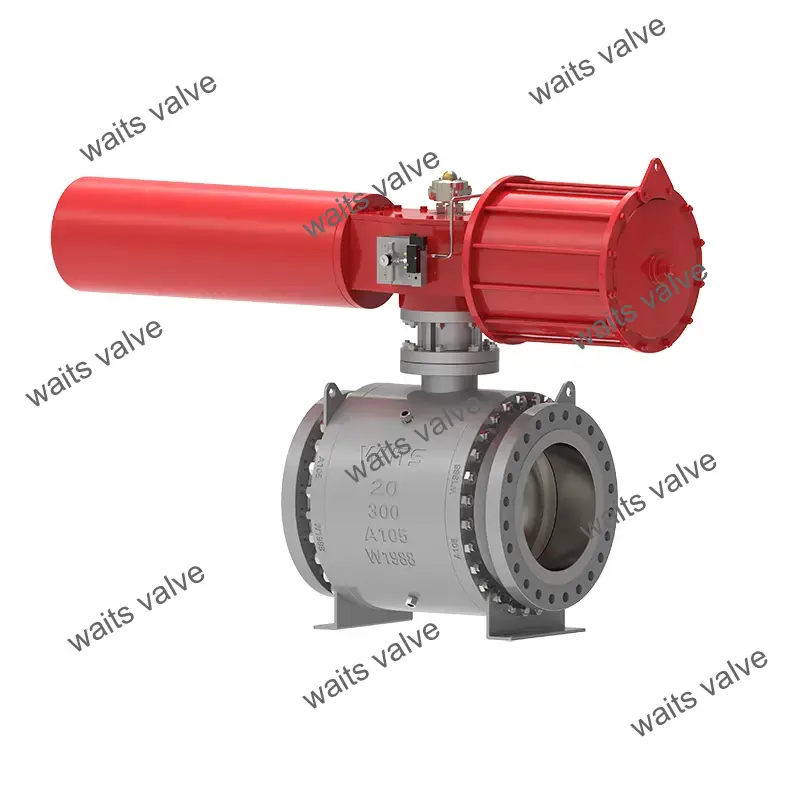

Trunnion ball valve is a steel ball valve, which is designed and manufactured with full consideration of performance and overall life in use. The valve body is forged with high-quality materials, the ball is installed, and the middle flange and neck are bolted. The valve seat upstream and downstream are single piston effects, DBB function. At the same time, there are three structures for the seal between the valve seat and the ball:

1. Traditional soft seal structure;

2. Triangular ring seal structure;

3. Hard seal structure.

Implementation Standards

Design Standard	API 6D, API 608, ISO 17292, GOST
Flange standards	ASME B 16.5, ASME B16.47, ASME B16.25, ASME B16.11, BS 12627;
End Connection	RF, RTJ, BW, etc
Inspection & Test	API 598, API 6D, BS 12569
Face to Face	ASME B16.10, EN 558, BS 12982, ISO 5752
Pressure and temperature levels	ASME B16.34
Fire Safe	API 6FA, API 607
Low Emission	ISO 15848, API 622
Anti-corrosion design	NACE MR 0103, NACE MR 0175

Application

Size	2"-32", DN50-DN800
Pressure Rating	Class 150-2500, PN10-PN420
Operating Temperature	Soft Seat: -29~200℃, Metal Seat: -29~450°C
Application range	Tap water, sewage, construction, petroleum, chemical industry, food, medicine, textile, electricity, shipbuilding, metallurgy, energy system, etc.
Operator	Lever, Gear, Electric, Pneumatic, etc.
Body Material	Carbon Steel, Stainless Steel, Duplex Stainless Steel, Alloy Steel, Monel, Al Bronze, etc.
Ball	Sphere: CS+ENP, A182 F304, F304L, F316, F316L, F51, F53, CS+TCC, CS+Ni60
Valve seat support ring	Seat support ring： CS+ENP, A182 F304, F304L, F316, F316L, F51, F53, CS+TCC, CS+Ni55
Valve seat insert	PTFE, RPTFE, Nylon, Devlon, PEEK
Valve stem	A182 F6a, F316, F51, A105+ENP, AISI 4140+ENP, 17-4PH

Performance Features

1. The valve stem is designed to prevent the valve stem from being ejected from the valve body due to improper operation.
2. The trunnion ball valve has a fireproof and anti-static device.
3. Emergency sealing grease injection ports are designed at the valve seat seal and the valve stem seal. Normal sealing does not rely on sealing grease. When the sealing surface is damaged and causes leakage, sealing grease can be injected for emergency repair. Each grease injection port is equipped with a grease injection valve and an embedded one-way valve.
4. A drain valve is installed at the lowest position of the valve body to vent and drain the valve cavity; a vent valve is installed on the upper part of the valve body to vent and clean the valve cavity online. The drain valve and vent valve can be isolation valves or special discharge joints to ensure safety, reliability and convenience.
5. It is equipped with a connection plate that can match various drive devices, including handles, worm gears, electric, pneumatic, gas-liquid linkage, electro-hydraulic linkage, etc.
6. The valve with welded ends can adjust the valve end material (transition section) according to the user's pipeline material grade to ensure the adaptability and weldability of the material strength. For valves with sleeves at both ends, the length of the sleeves can ensure that on-site welding operations do not affect the sealing materials.
7. Buried design. For buried valves, the valve stem is lengthened according to the needs of the project to facilitate above-ground operations, and the corresponding grease injection, sewage discharge and venting devices are extended from the pipe to the ground. The height of the buried and raised valve is provided by the customer.
