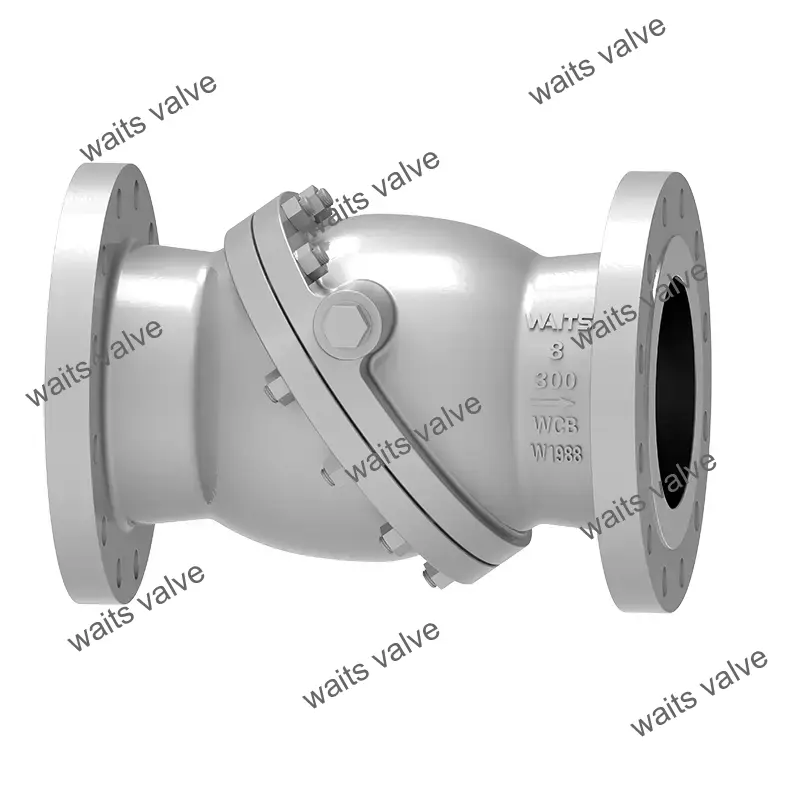

Tilted Disc Check Valve

The tilted disc check valve is a high-quality and durable product of Waits Valve. As a professional valve manufacturer, our technology and production equipment keep up with the advanced level of the industry in real time. After being updated and fully inspected, the product can be closed quickly, and the valve disc can quickly reach the valve seat position, minimizing the impact phenomenon.

Send Inquiry

Product Description

Tilted disc check valve is a non-impact check valve. Its main advantage is to overcome the impact and water hammer caused by swing check valve and lift check valve and realize non-impact operation.

Implementation Standards

Design Standard	API 6D, BS 1868, GOST
Flange standards	ASME B16.5, ASME B16.25
End Connection	RF, RTJ, BW, etc.
Inspection & Test	API 598, GOST
Face to Face	ASME B16.10, GOST
Pressure and temperature levels	ASME B16.34
Anti-corrosion design	NACE MR 0103, NACE MR 0175.ISO15156

Application

Size	2"-36", DN50-DN900
Pressure Rating	Class 150-600, PN10-PN100
Operating Temperature	-60°C~ 450°C
Application range	It is suitable for various media such as water, steam oil, nitric acid, acetic acid, strong oxidizing media, etc.
Body Material	Carbon Steel, Stainless Steel, Duplex Stainless Steel, Alloy Steel, Monel, Al Bronze, etc.
Valve plate	Forgings：A105, A182 F304, F304L, F316, F316L,F51, F53, B148,A350 LF2, LF3, LF5, Monel, Castings：A216 WCB, CF3, CF8, CF3M, CF8M, 4A, 5A, C95800, LCB, LCC, LC2
Valve seat	Body material, 13CR, stainless steel 304/316, monel, cemented carbide, alloy 20, copper alloy, etc.
Valve stem	A182 F6a,17-4PH，F304 F316, F51, ...

Performance Features

The tilted disc check valve uses double eccentric discs in design and manufacturing, and the valve seat is a slightly elastic metal valve seat, which can ensure the sealing performance of the valve during operation. The butterfly disc helps to open quickly and has strong durability, effectively extending the service life, saving you maintenance and replacement costs, and has low flow resistance and excellent performance.

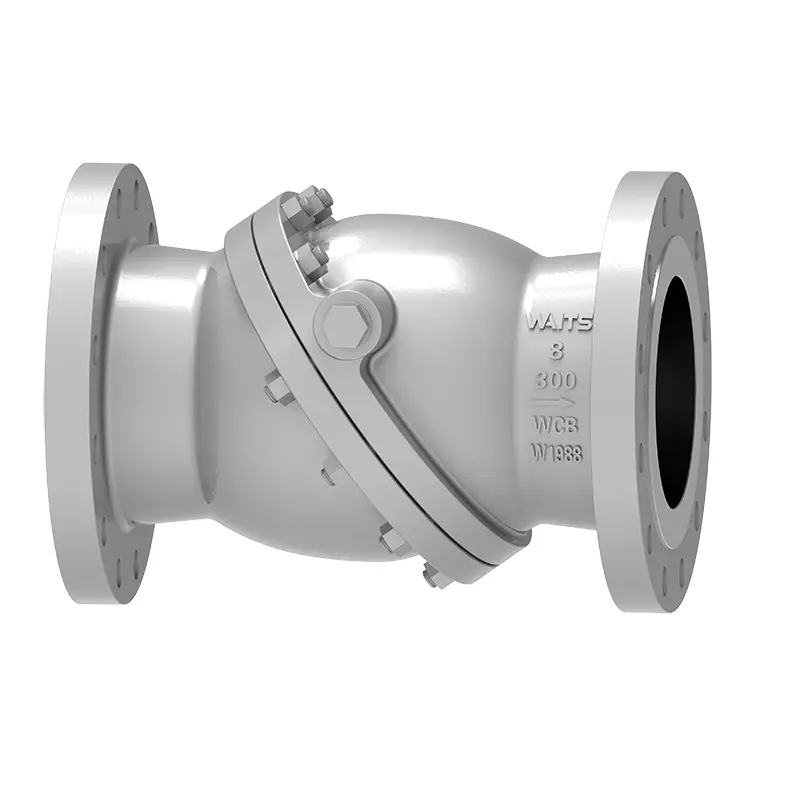

Tilted Disc Check Valve
