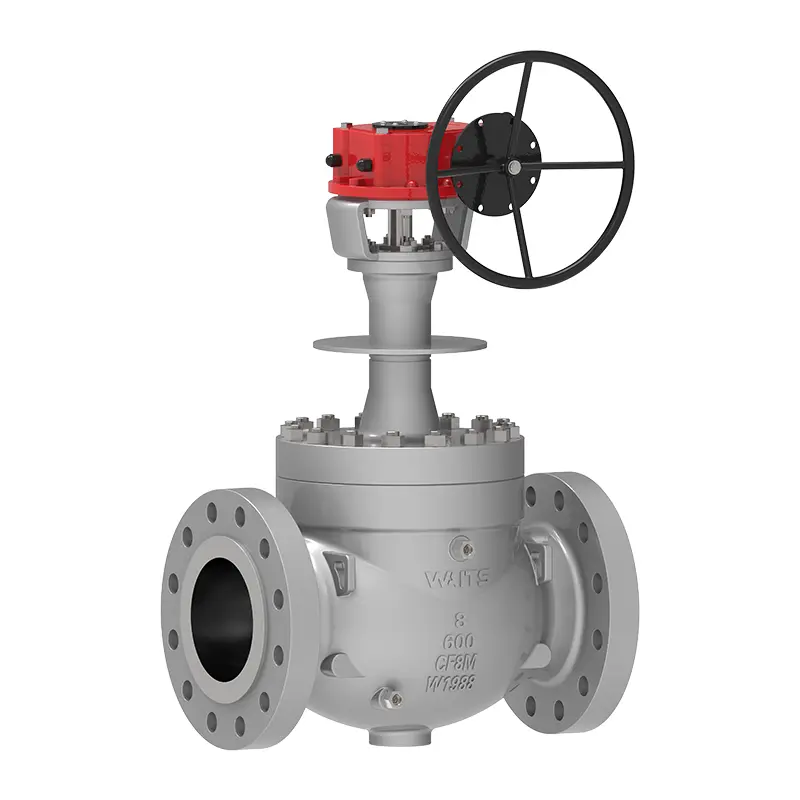

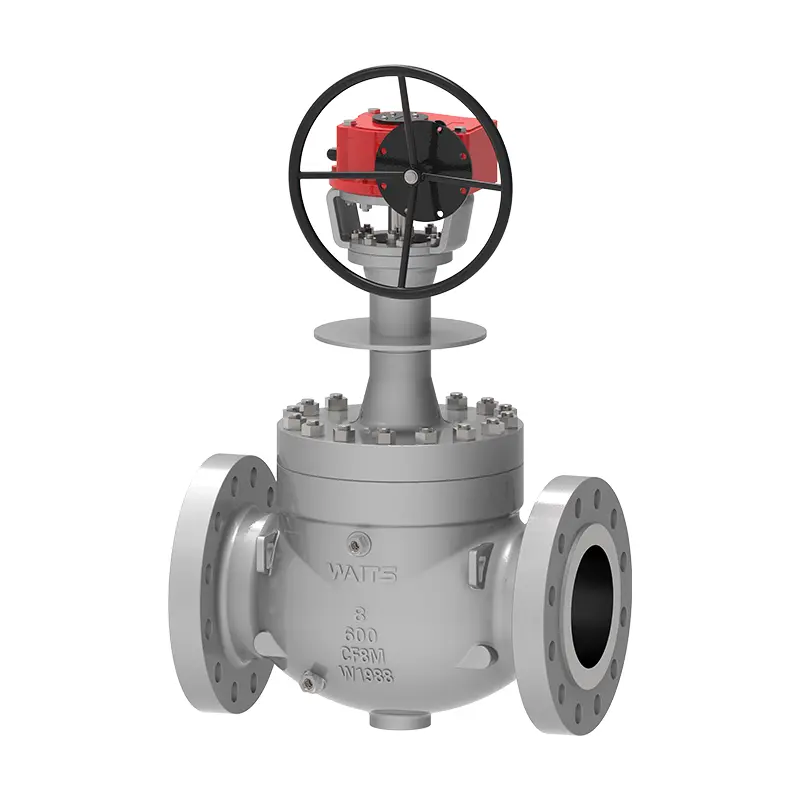

Cryogenic Top Entry Ball Valve

Waits is a manufacturer specializing in the production of various valves, including cryogenic top entry ball valve. This product has been well used in Saudi Arabia, the United Arab Emirates, Kuwait, and the northern region due to its price advantage. Its powerful and stable performance can cope with some complex working conditions and has been well received by many users.

Send Inquiry

Product Description

Cryogenic top entry ball valve can be used in working conditions with temperature up to -196℃, such as liquefied natural gas, liquefied petroleum gas, air separation and other cryogenic industries.
As an experienced valve integration supplier, Waits actively applies international advanced technology and adopts LIP SEAL sealing ring to ensure that our products maintain excellent sealing performance in application. The entire series of products have passed fireproof and low leakage certification, and the top entry valve can realize online maintenance.

Implementation Standards

Design Standard	API 6D, BS 6364
End Connection	RF, RTJ, BW
Inspection & Test	API 598 & BS 6364
Face to Face	ASME B16.10
Pressure and Temperature Levels	ASME B16.34
Fire Safe	API 6FA, API 607
Low Leakage Standards	ISO 15848-1, API 622
Anti-Corrosion Design	NACE MR 0103 ，NACE MR 0175

Application

Size	1/2"-28", DN15-DN700
Pressure Rating	Class 150-2500, PN10-PN420
Operating Temperature	-196°C ~ 150°C
Application Range
Operator	Gear, Electric, Pneumatic, Bare Stem, etc.
Body Material	A351 CF3, CF8, CF3M, CF8M, A182 F304, F304L, F316, F316L, etc.
Ball	A182 F304/F304L/F316/F316L+Ni60
Valve Seat Support Ring	A182 F304/F304L/F316/F316L/STL Overlay
Valve Seat Insert	PCTFE
Valve Stem	XM-19, Gr660 Ty2/HT

Performance Features

● With precision machining technology, the gap between the valve stem and the extended valve cover is strictly quality tested and controlled below 1mm, ensuring smooth rotation of the valve stem and reducing the possibility of freezing and damage of the valve stem under low temperature conditions.
● Lip seal (Elgiloy+PTFE): This seal can combine the flexible compensation function of the spring and the excellent sealing performance of PTFE, maintain excellent sealing performance in low temperature environments, and has a fireproof design through graphite secondary sealing.
● All fasteners are low-temperature full-threaded structures to avoid deformation and sealing failure of fasteners due to long-term use.
