Cryogenic Side Entry Ball Valve

If you are looking for high-performance cryogenic side entry ball valves, Waits can meet your needs. We are a large valve integration supplier, founded in the United States in 1994, entered China in 2008, and have production bases in Tianjin and Wenzhou. We have rich industry experience and keep pace with the times, actively introducing the industry's top technology and production equipment to ensure product quality.

Send Inquiry

Product Description

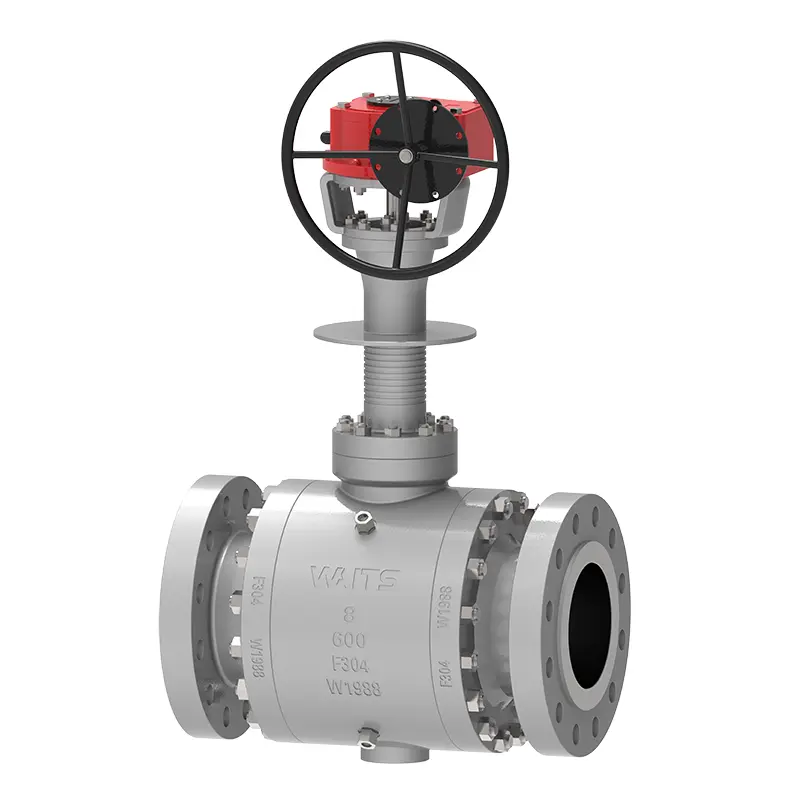

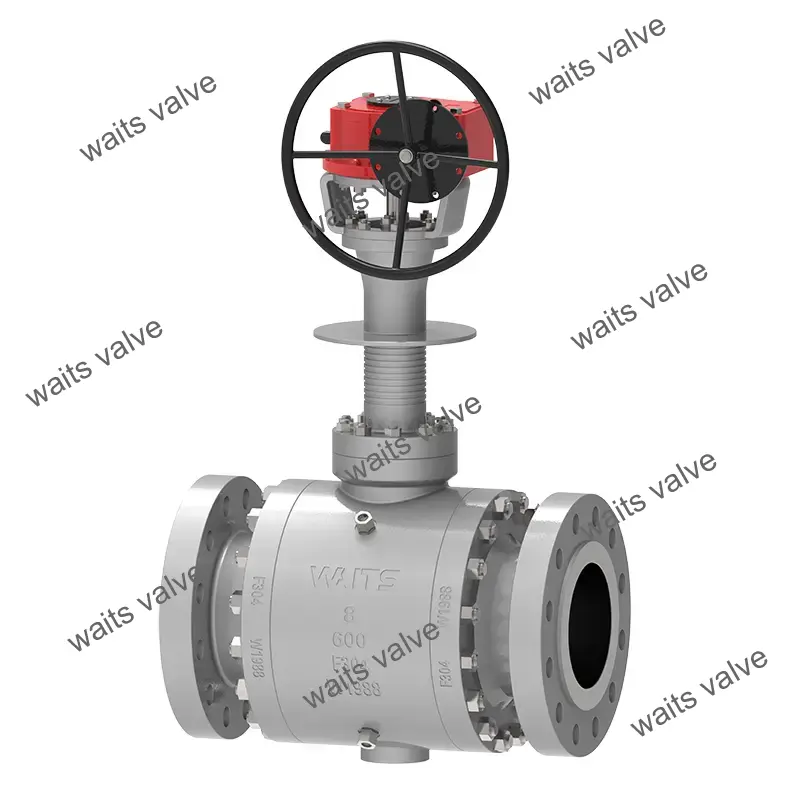

Cryogenic side entry ball valve is suitable for working conditions with temperature up to -196℃ and is widely used in liquefied natural gas, liquefied petroleum gas, air separation and other cryogenic industries. In production, we apply international advanced technology and adopt LIP SEAL sealing ring to keep the valve with excellent sealing performance in application. At the same time, this series of valves can realize online maintenance.

Implementation Standards

Design Standard	API 6D, BS 6364
End Connection	RF, RTJ, BW
Inspection & Test	API 598 & BS 6364
Face to Face	ASME B16.10
Pressure and Temperature Levels	ASME B16.34
Fire Safe	API 6FA, API 607
Low Leakage Standards	ISO 15848-1, API 622
Anti-Corrosion Design	NACE MR 0103, NACE MR 0175

Application

Size	1/2"-28", DN15-DN700
Pressure Rating	Class 150-2500, PN10-PN420
Operating Temperature	-196°C ~ 150°C
Application Range
Operator	Lever, Gear, Electric, Pneumatic
Body Material	A351 CF3, CF8, CF3M, CF8M, A182 F304, F304L, F316, F316L, etc.
Ball	A182 F304/F304L/F316/F316L+Ni60
Valve Seat Support Ring	A182 F304/F304L/F316/F316L/STL Overlay
Valve Seat Insert	PCTFE
Valve Stem	XM-19, Gr660 Ty2/HT

Performance Features

Key designs and technologies in cryogenic side entry ball valve:
● Lip-seal + packing double seal of valve stem can reduce the amount of packing.
● Finite element assisted design is used to obtain the optimal wall thickness of the extended valve cover to ensure the best cooling effect.
● The arc moon groove design of the extended valve cover increases the cooling area and enhances the cooling effect.
● The drip plate design increases the cooling area and prevents the packing from freezing; effectively prevents condensed water from dripping onto the valve body.
● Lip-seal + gasket double seal is set at the body cover connection to prevent leakage.
● The valve seat adopts DIB-2 structure, which can ensure that the pressure in the middle cavity is stably released to the specified side when the pressure exceeds the limit.
● The valve seat seal is a Lip-sea structure, which has both the elastic compensation of the spring and the low-temperature elastic sealing performance of PTFE, ensuring excellent sealing effect at low temperatures.
● The valve seat sealing surface is imported CTFE, which still has good elasticity at ultra-low temperatures to ensure that the seal does not fail.
● The extended bonnet and long handle structure design ensures better coaxiality of the ball handle, valve stem and bonnet, and more sensitive switching.
● All fasteners in contact with low temperatures are fully threaded.
● The surface of the ball is hardened to ensure that it will not be scratched at low temperatures.

Cryogenic Side Entry Ball Valve
