Cryogenic Globe Valve

Waits has 30 years of experience in the production and manufacture of cryogenic globe valves. We were originally established in the United States in 1994 and entered China in 2008, with production bases in Tianjin and Wenzhou. The cryogenic globe valve is one of our most popular products, designed for arctic temperature applications and can handle complex working conditions.

Send Inquiry

Product Description

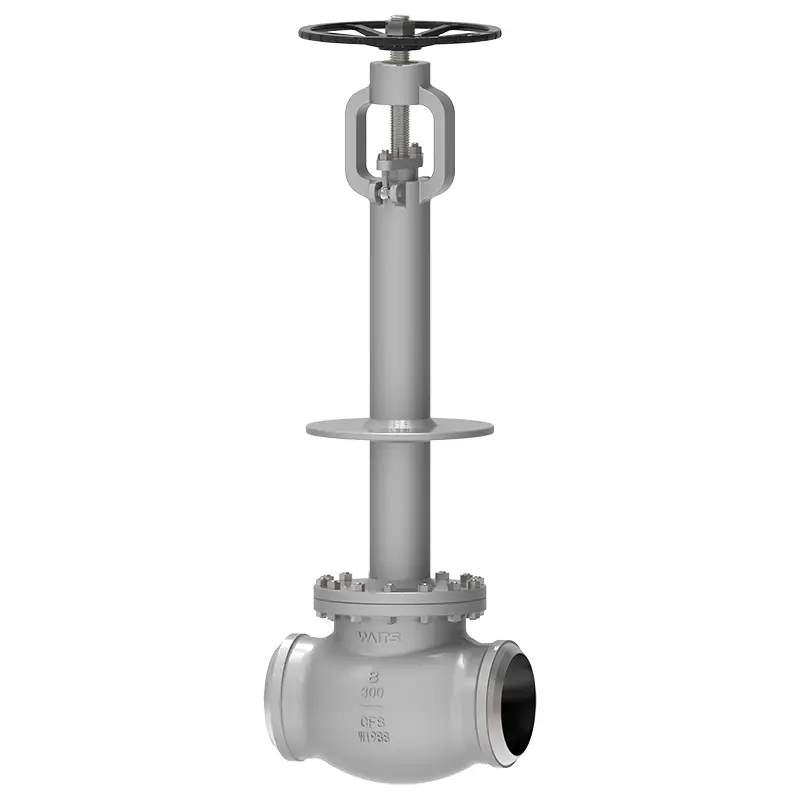

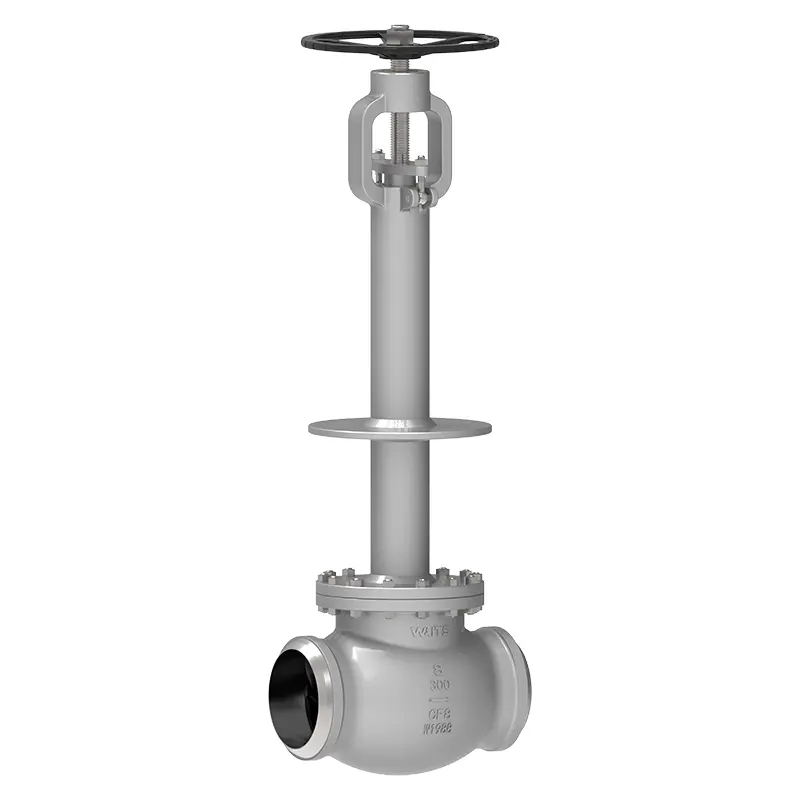

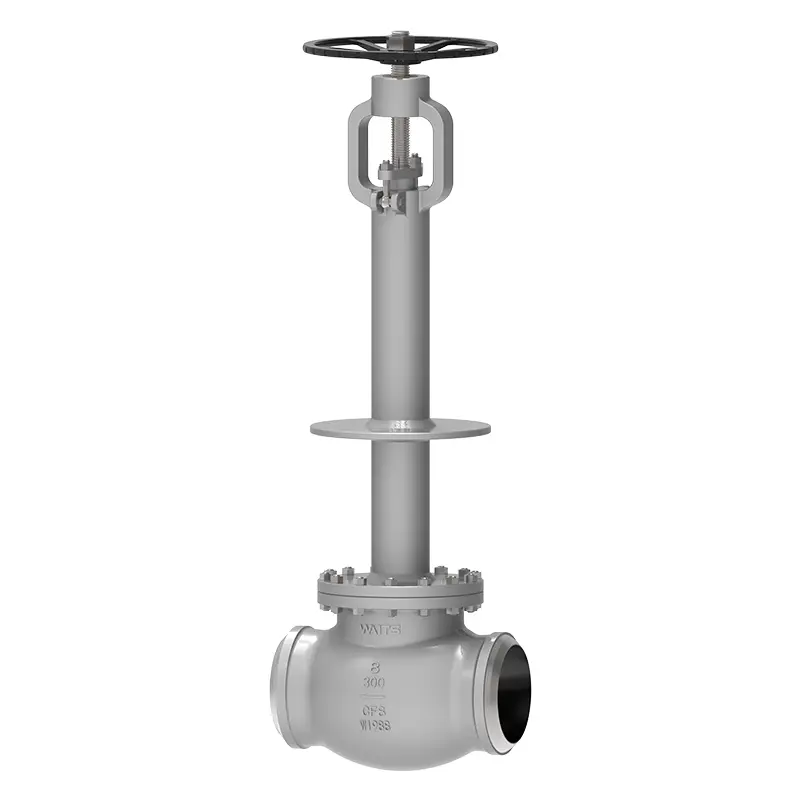

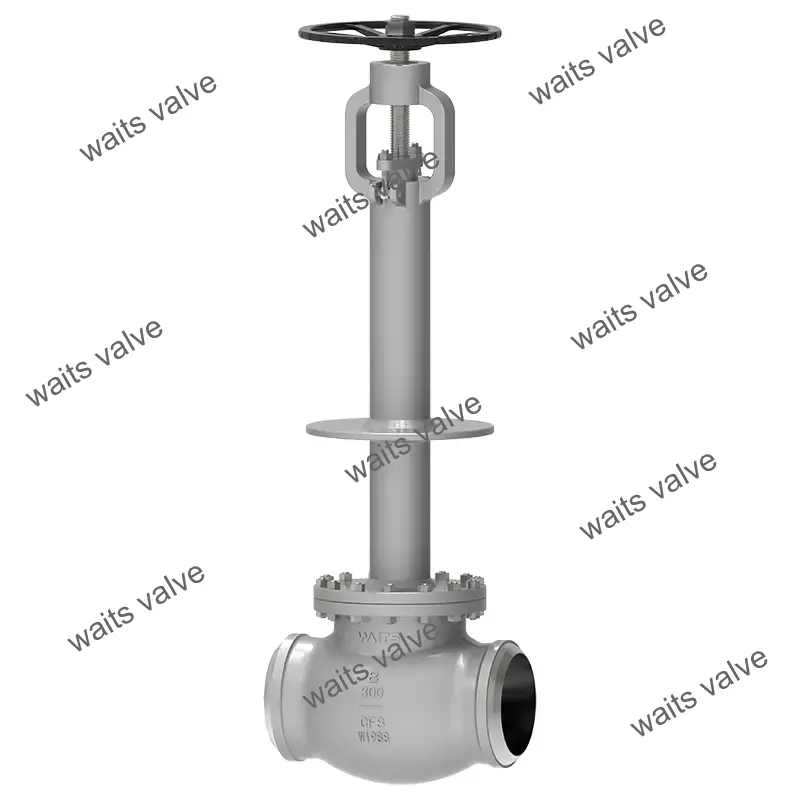

The cryogenic globe valve is designed for applications involving extremely low temperatures, often found in industries handling liquefied natural gas (LNG), liquid nitrogen, and other cryogenic fluids.
This valve features an extended bonnet for proper insulation and to prevent the stem from freezing. Made entirely of stainless steel and other cryogenic materials, it ensures durability and smooth operation even at temperatures as low as -196°C.
The cryogenic globe valve also features precise throttling capabilities and a sealing mechanism, which are essential for maintaining control and safety in demanding cryogenic environments. Waits insists on quality as its top priority, while also offering you competitive pricing.

Implementation Standards

Design standards	API 600, API 602, BS 6364, ASME B16.34, MESC SPE 77/200, MSS SP-134
Flange standards	ASME B16.10, ASME B16.25, ASME B16.5
Connection methods	RF, RTJ, BW
Testing and acceptance	API 598/BS 6364, MESC SPE 77/200, MSS SP-134
Structural length	ASME B16.10,
Pressure and temperature ratings	ASME B16.34、
Fireproof test	API607, API6FA
Low leakage standards	ISO 15848-1, API 622
Anti-corrosion design	NACE MR 0103, NACE MR 0175

Application

Size	NPS 2″ ~ NPS 24″ DN50~ DN600
Pressure range	CL150~ CL1500 PN10~ PN250
Temperature range	；-196°C ~ +150°C
Application range	Mainly used in ethylene, liquefied natural gas equipment, natural gas LPG, LNG storage tanks, receiving bases and satellite stations, air separation equipment, petrochemical tail gas separation equipment, liquid oxygen, liquid hydrogen, liquid nitrogen, liquid argon
Drive mode	Turbine, pneumatic, electric
Valve body/valve cover	A182 F304/F304L/F316/F316L/CF3/CF3M/LF2/LCB/LF3/LCC
Valve plate/valve seat	F316/F304+HF
Valve stem	F6A F304 F316 F51 F53 Monel K500
Valve stem nut	Copper Alloy
Packing	Flexible graphite, graphite asbestos packing, polytetrafluoroethylene...

Performance Features

1. The valve parts in contact with the medium are strictly cryogenically treated according to the requirements of the specification before finishing, and can withstand the expansion and contraction caused by temperature changes, and the structure of the valve seat will not be permanently deformed due to temperature changes;
2. The cryogenic globe valve adopts a long-necked bonnet structure that can protect the stuffing box;
3. A gate structure that can maintain reliable sealing regardless of temperature changes is adopted;
4. The upper sealing seat is welded with a cobalt-chromium-tungsten carbide structure;
5. The valve seat and gate sealing surface are welded with a cobalt-chromium-tungsten carbide structure;
6. The pressure relief hole structure is used to prevent abnormal pressure rise in the middle cavity, and the position of the pressure relief hole depends on the valve structure;
7. The surface of the valve stem is nitrided and hardened to prevent surface scratches during the opening and closing process of the cryogenic globe valve from affecting performance;
8. The packing can be selected as low-leakage packing according to user requirements to ensure that the leakage at the valve packing meets environmental protection requirements. In addition, we can also provide welding sleeves according to user requirements.
