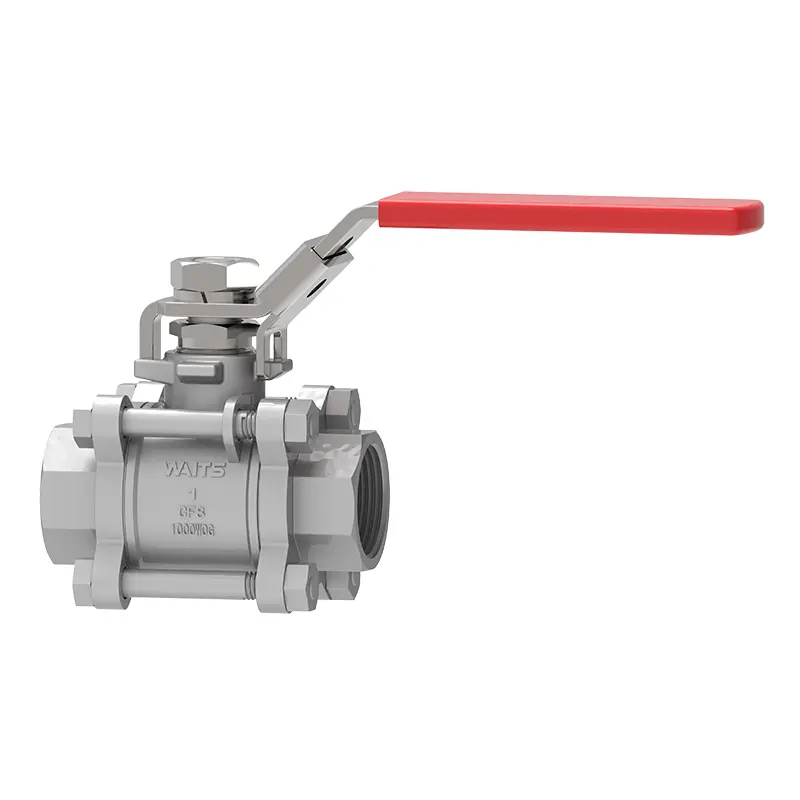

3 Piece Threaded Ball Valve

Waits' 3 piece threaded ball valve has been professionally manufactured, with excellent performance and high durability. We are a large valve manufacturer, originally established in the United States, and established a branch in China in 2008. We insist on improving product quality and providing customers in the global market with high-quality products and services at favorable prices. You can contact us at any time to learn more about valve products.

Send Inquiry

Product Description

3 piece threaded ball valve, a valve mainly used to cut off, distribute and change the flow direction of the medium in the pipeline, is fully quality controlled during our production and manufacturing process to ensure the following performance:
1. Small fluid resistance, the resistance coefficient is equal to the pipe section of the same length.
2. Simple structure, small size and light weight.
3. The sealing surface material widely uses plastic and has good sealing performance.
4. Quick opening and closing, convenient for remote control.
5. Easy maintenance, the disassembly and replacement of the sealing ring are relatively convenient.
6. When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium, which will not cause erosion of the valve sealing surface.
7. Wide range of applications, diameters range from a few millimeters to several meters, and can be used from high vacuum to high pressure.
8. When the ball rotates 90 degrees, the inlet and outlet are all spherical, thereby cutting off the flow.

Implementation Standards

Design standards	API 6D, API 608, ASME B16.34, ISO 17292, BS5351，
Flange standards	ASME B 16.5, ASME B16.25, ASME B16.11
Connection methods	Internal Thread Connection
Testing and acceptance	API598 API 6D BS12569
Structural length	ASME B16.10, BS 558, BS12982, ISO 5752
Pressure and temperature levels	ASME B16.34
Fire protection requirements	API6FA API607
NACE Design	NACE MR 0103, NACE MR 0175

Application

Size	NPS 1/2”, DN15
Pressure range	150LB–600LB, PN16–PN64
Temperature range	-29℃ ~ +200℃
Application range	Tap water, sewage, construction, petroleum, chemical industry, food, medicine, textile, electricity, shipbuilding, metallurgy, energy system, etc.
Drive mode	Lever, Pneumatic, Electric, etc.
Valve body	Forgings：A105, A182 F304, F304L, F316, F316L,F51, F53, A350 LF2, LF3, LF5, Monel
Ball	A182 F304, F304L, F316, F316L, F51, F53, Metal Seated
Valve seat insert	PTFE, RPTFE, Nylon, Devlon, PEEK
Valve stem	A182 F6a, F316, F51, A105+ENP, AISI 4140+ENP, 17-4PH

Performance Features

The valve stem packing is adjustable, with high-precision ball and high-seal seat. The ball and valve seat are durable and have a long service life. They are designed with anti-blowout valve stem and safety pressure relief holes.
The seals and valve seats are made of pure Telfon material. The overall product has high cost performance, good fire resistance and anti-static safety, suitable for a variety of use needs and wide application. There is an optional locking device.
The 3 piece threaded ball valve has been 100% leak tested in 100psi air underwater, and the hydrostatic test pressure is 1500PSI.
Temperature range: -60 to 450 degrees Celsius.
