NPT Forged Steel Globe Valve

Waits is your reliable choice for purchasing high-quality NPT forged steel globe valve. The valve is made of high-quality forged steel material, with exquisite structural design, good sealing and durability, and can effectively control the flow of media. Whether in petroleum, chemical or other industrial fields, NPT forged steel globe valve is a reliable fluid control choice to ensure the stable operation of your pipeline system.

Send Inquiry

Product Description

In valve manufacturing, the quality of forged steel parts is usually higher than that of cast steel parts, and they can withstand large impact forces. Their plasticity, toughness and other mechanical properties are also higher than those of cast steel parts.
The diameter of forged steel globe valve is generally not more than DN80, and most of them are reduced diameter designs. Compared with cast steel stop valves of the same diameter, the flow rate is slightly smaller, but the pressure and temperature range it can withstand is higher than that of cast steel valves, and the sealing performance is much better than that of cast steel stop valves, and the service life is longer.
Like other globe valves, NPT forged steel globe valves are also restricted by the flow direction of the medium. According to the different installation positions, they can be divided into straight-through globe valves and direct-flow globe valves.

Implementation Standards

Design standards	API602, ASME 16.34, BS 5352, BS 6364
Flange standards	SW Socket welding ends according to ASME B16.11, BW butt end by ASME B16.25, NPT threaded connectors according to ASME B1.20.1
Connection methods	SW, NPT, BW, RF, RTJ
Testing and acceptance	API 602/API 598
Structural length	Socket welding/threaded end forged steel gate valve structural length according to factory standards Flanged end/butt welding end forged steel gate valve according to ASME B16.10
Pressure and temperature levels	ASME B16.34、
Low leakage standards	ISO 15848-1, API 622
Anti-corrosion design	NACE MR 0103 ，NACE MR 0175

Application

Size	NPS1/4″~NPS3″ DN6~DN80
Pressure range	CL150~ CL2500 PN10~ PN420
Temperature range	；-196°C ~ +600°C
Application range	Tap water, sewage, construction, petroleum, chemical industry, food, medicine, textile, electricity, shipbuilding, metallurgy, energy system, etc.
Drive mode	Turbine, pneumatic, electric
Valve body/valve bonnet	A105, A350 LF2, A182 F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51), Alloy 20, Monel
Valve core Sealing surface	A105, A350 LF2, A182 F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51), Alloy 20, Monel
Valve stem	F6A F304 F316 F51 F53 Monel K500...
Valve stem nut	Copper alloy...
Packing	Flexible graphite, graphite asbestos packing, polytetrafluoroethylene...

Performance Features

1. The main components of NPT forged steel globe valve are forged, and there are three types of cavity seals: bolted bonnet, welded bonnet and cavity pressure self-tightening seal structure.
Among them, the bolted bonnet means that the valve body and the bonnet are connected by bolts and nuts, and the wound gasket made of stainless steel wire clip flexible graphite is used for sealing. If you have special requirements, we can also use metal ring connection.
The welded bonnet means that the valve body and the bonnet are connected by threads, fully welded and sealed, and can also be fully welded according to your needs.
The 9001b, 1500Ib, 2500Ib, 45001b cavity can also adopt a pressure self-tightening seal structure, and the sealing performance increases with the increase of internal pressure, and the reliability is high.
2. The medium channel in the valve body is tortuous, which will cause large fluid resistance and power consumption.
3. The sealing surface is not easy to wear and scratch, and the sealing performance is good. There is no relative sliding between the valve disc and the sealing surface of the valve body when opening and closing, and the wear and scratch are not serious, and the service life is longer.
4. Flexible graphite packing is used, which has reliable sealing and is easy and flexible to operate.
5. The medium of the globe valve can only flow in one direction and cannot change the flow direction. Therefore, it is necessary to pay attention to the flow direction of the medium and the direction of the arrow of the valve body during installation.
6. Packing replacement and maintenance can be carried out in a shutdown state, which is convenient and fast and does not affect the operation of the system.
7. The shape is simple, the structure length is short, the manufacturing process is good, and the application range is wide.

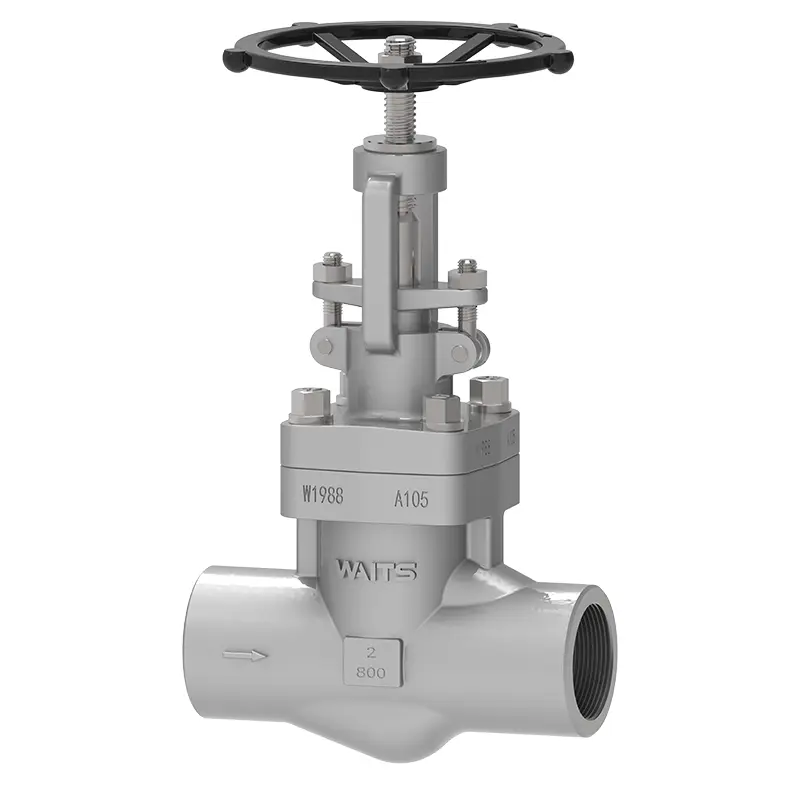

NPT Forged Steel Globe Valve
