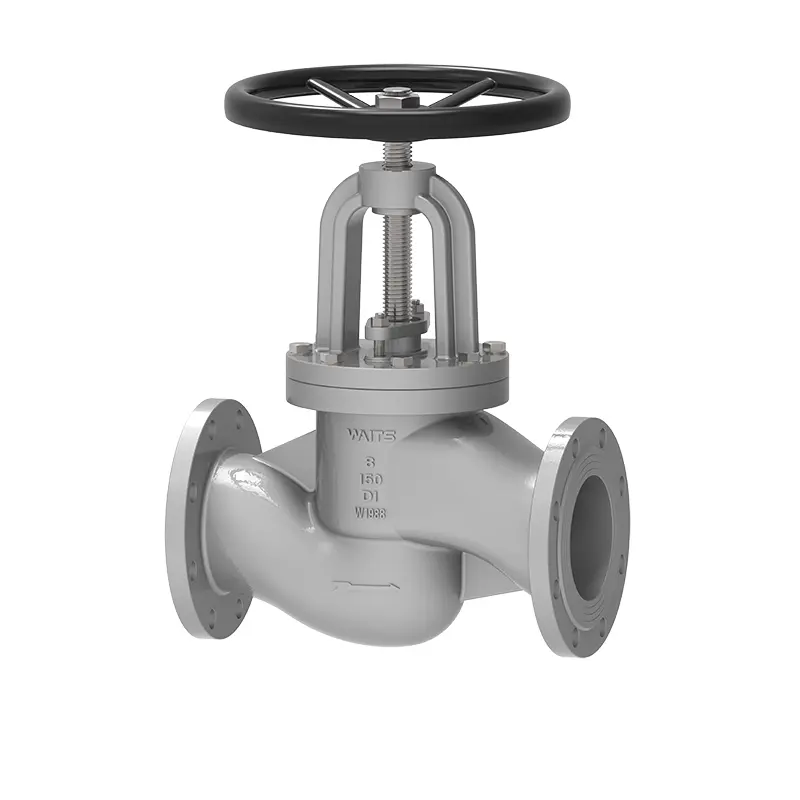

Ductile Iron S Pattern Globe Valve

The ductile iron S pattern globe valve manufactured by Waits complies with AISI/DIN/BS/standards, with stable performance and high cost performance. We were originally established in the United States, and now our global headquarters is located in Wenzhou, China. We have more than one production base, stable supply, and can provide you with preferential prices.

Send Inquiry

Product Description

The ductile iron S pattern globe valve produced by Waits is designed for precise flow control and minimum leakage. We carefully select raw materials to ensure that the valve's corrosion resistance and wear resistance are within a reliable range and suitable for long-term use.
This globe valve is designed to adapt to high pressure conditions and can remain stable and reliable in different industrial applications. It adapts to different working conditions and pipeline characteristics, and does not require frequent maintenance. It has a good service life and reduces your labor and maintenance costs during use.
The throttling capacity of the ductile iron S pattern globe valve is widely used in water treatment plants, steam applications and chemical industries. In addition, some high-pressure systems will also choose this valve because of its good structural strength and strong adaptability.

Implementation Standards

Design standards	,API603, ASME B16.34, DIN 3352, EN1984
Flange standards	ASME B 16.5, ASME B16.47, DIN2543, EN1092-1, DIN2545;
Connection methods	SW, RF,
Testing and acceptance	API598, DIN 3230, EN 12569
Structural length	ASME B16.10, DIN3352-F4/F5, EN 558-1
Pressure and temperature levels	ASME B16.34、
Low leakage standards	ISO 15848-1, API 622
Anti-corrosion design	NACE MR 0103, NACE MR 0175

Application

Size	NPS 2″ ~ NPS 12″ DN50~ DN300
Pressure range	CL125~ CL300 PN10~ PN64
Temperature range	；-10°C ~ +220°C
Application range	Tap water, sewage, construction, petroleum, chemical industry, food, medicine, textile, electricity, shipbuilding, metallurgy, energy system, etc.
Drive mode	Turbine, pneumatic, electric
Valve body/valve cover	DI WCB, CF8, CF8M, CF3, CF3M, 4A, 5A, 6A),
Valve plate/valve seat	DI, DI+EPDM, WCB, WCB+EPDM CF8, CF8M, CF3, CF3M
Valve stem	F6A F304 F316 F51 F53 Monel K500
Valve stem nut	Copper Alloy
Packing	Flexible graphite, graphite asbestos packing, polytetrafluoroethylene...

Performance Features

(1) The structure of the stop valve is simpler than that of the gate valve, and it is easier to manufacture and maintain.
(2) The sealing surface is not easy to wear and scratch, and the sealing performance is good. There is no relative sliding between the valve disc and the sealing surface of the valve body during opening and closing, so the wear and scratch are not serious, the sealing performance is good, and the service life is long.
(3) When opening and closing, the valve disc has a small stroke and a smaller height than the gate valve, but the structural length is longer than the gate valve.
(4) The opening and closing torque is large and the opening and closing time is relatively long.
(5) Because the medium channel in the valve body is tortuous, the fluid resistance is large and the power consumption is relatively large.
(6) When the nominal pressure PN of the medium flow direction is ≤16MPa, the downstream is generally adopted, and the medium flows upward from the bottom of the valve disc; when the nominal pressure PN≥20MPa, the reverse flow is generally adopted, and the medium flows downward from the top of the valve disc to increase the sealing performance. However, it should be noted that when using the stop valve, the medium can only flow in one direction and cannot change the flow direction.
(7) The valve disc is easily eroded when fully open, so you need to pay attention when using it.
The valve stem axis of the stop valve is perpendicular to the valve seat sealing surface. The valve stem opening or closing stroke is relatively short and has a reliable cutting action. It is suitable for cutting off, regulating and throttling the medium.

Ductile Iron S Pattern Globe Valve
