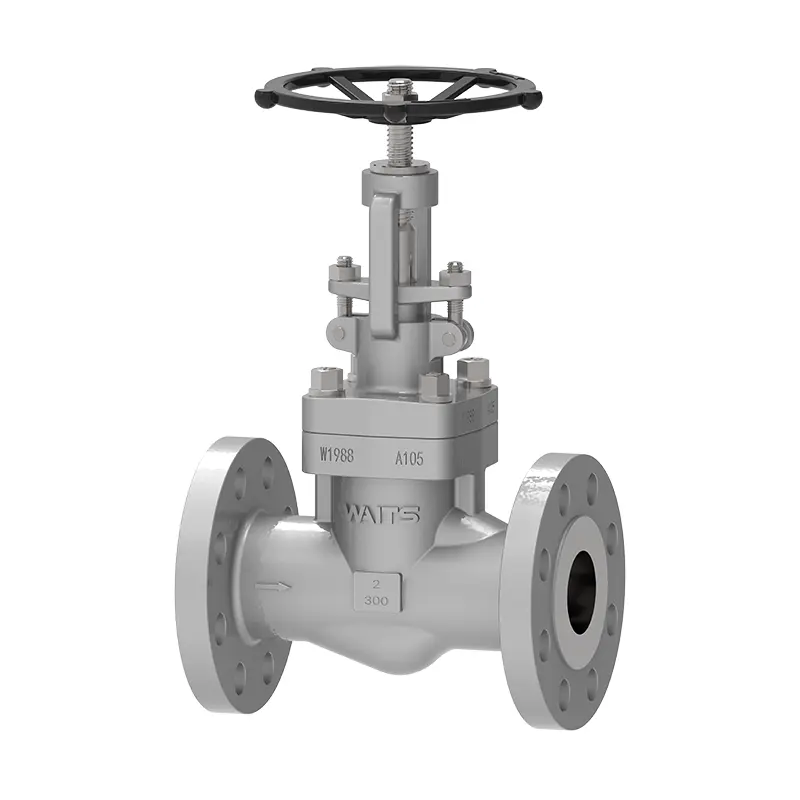

Forged Steel Globe Valve

Waits can provide you with high-quality forged steel globe valve. Our industrial chain has been developed for many years, perfect and advantageous, supporting mass production, and the price is good. The product is made of high-quality forged steel, with good sealing, durability, easy operation, suitable for a variety of industrial pipeline systems, and is a reliable choice for your purchase.

Send Inquiry

Product Description

The quality of forged steel parts is higher than that of cast steel parts, and they can withstand large impact forces. The plasticity, toughness and other mechanical properties are also higher than those of cast steel parts. The diameter of forged steel globe valve is generally not more than DN80, and most of them are designed with reduced diameter. Compared with the cast steel globe valve of the same diameter, the flow rate is slightly smaller, but the pressure and temperature range are higher than those of cast steel valves, and the sealing performance is much better than that of cast steel globe valves, and the service life is longer.
Like other globe valves, forged steel globe valves are subject to the flow direction of the medium. According to the different installation positions, they can be divided into straight-through globe valves and direct-flow globe valves (Y-type globe valves).

Implementation Standards

Design Standard	API 602, GOST
Flange standards	SW Socket welding ends according to ASME B16.11, BW butt end by ASME B16.25, NPT threaded connectors according to ASME B1.20.1
End Connection	SW, NPT, BW, RF, RTJ, etc.
Inspection & Test	API 598
Face to Face	ASME B16.10, GOST
Pressure and temperature levels	ASME B16.34
Low leakage standards	ISO 15848-1, API 622
Anti-corrosion design	NACE MR 0103, NACE MR 0175

Application

Size	1/4"-3", DN6-DN80
Pressure Rating	Class 150-2500, PN10-PN420
Operating Temperature	-60°C~ 450°C
Application range	Tap water, sewage, construction, petroleum, chemical industry, food, medicine, textile, electricity, shipbuilding, metallurgy, energy system, etc.
Operator	HW, Electric, Pneumatic
Body Material	Carbon Steel, Stainless Steel, Duplex Stainless Steel, Alloy Steel, Monel, Al Bronze, etc.
Valve core Sealing surface	A105, A350 LF2, A182 F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51), Alloy 20, Monel
Valve stem	F6A F304 F316 F51 F53 Monel K500...
Valve stem nut	Copper alloy...
Packing	Flexible graphite, graphite asbestos packing, polytetrafluoroethylene...

Performance Features

1. The main components are forged. Forged steel globe valve has three types of cavity seals: bolted bonnet, welded bonnet and cavity pressure self-tightening seal structure.
2. Bolted bonnet means that the valve body and bonnet are connected with bolts and nuts, and the wound gasket (made of stainless steel wire clip and flexible graphite) is sealed. Metal ring connection can also be used when customers have special requirements.
3. Welded bonnet means that the valve body and bonnet are connected with threads and fully welded. Full penetration connection can also be used when customers have special requirements.
4. The cavity of 9001b, 1500Ib, 2500Ib, 45001b can also adopt pressure self-tightening seal structure, the sealing performance increases with the increase of internal pressure, and the reliability is high.
5. The medium channel in the valve body is tortuous, the fluid resistance is large, and the power consumption is large. 6. The sealing surface is not easy to wear and scratch, and has good sealing performance. There is no relative sliding between the valve disc and the sealing surface of the valve body when opening and closing, so the wear and scratch are not serious, the sealing performance is good, and the service life is long.
7. Flexible graphite packing is used, the sealing is reliable, and the operation is light and flexible.
8. The medium of the globe valve can only flow in one direction and cannot change the flow direction. When installing, pay attention to the flow direction of the medium and the direction of the arrow of the valve body.
9. The packing replacement and maintenance can be carried out in a state of shutdown, which is convenient and quick and does not affect the operation of the system.
10. The shape is simple, the structure length is short, the manufacturing process is good, and the application range is wide.
