Swing Check Valve

Waits is a professional valve manufacturer, and swing check valve is our main product. Our global headquarters is located in Wenzhou, China, and we also have production bases in other regions. We have reliable inventory, favorable prices and timely delivery. Even in the face of huge market demand, our delivery capabilities are very strong. Please feel free to contact us.

Send Inquiry

Product Description

Check valves, also known as one-way valves or non-return valves, are an automatic valve that automatically opens and closes by the force generated by the flow of the medium in the pipeline. Check valves are used in pipeline systems. Their main functions are to prevent the backflow of the medium, the reverse rotation of the pump and its drive motor, and the release of the medium in the container. Check valves can also be used in pipelines that provide supply to auxiliary systems where the pressure may rise to a level that exceeds the main system pressure. Our check valve products with relatively high demand in the market include swing check valves and lift check valves.

Implementation Standards

Design Standard	API 6D, BS 1868, GOST
Flange standards	ASME B16.5, ASME B16.25, DIN2543~2548, API 605, ASME B16.47, ISO7005-1.
End Connection	RF, RTJ, BW, etc.
Inspection & Test	API 598, GOST
Face to Face	ASME B16.10, GOST
Pressure and temperature levels	ASME B16.34
Anti-corrosion design	NACE MR 0103, NACE MR 0175.ISO15156

Application

Size	2"-36", DN50-DN900
Pressure Rating	Class 150-2500, PN10-PN420
Operating Temperature	-60°C~450°C
Application range	It is suitable for various media such as water, steam oil, nitric acid, acetic acid, strong oxidizing media, etc.
Body Material	Carbon Steel, Stainless Steel, Duplex Stainless Steel, Alloy Steel, Monel, Al Bronze, etc.
Valve plate	Forgings：A105, A182 F304, F304L, F316, F316L,F51, F53, B148,A350 LF2, LF3, LF5, Monel, Castings：A216 WCB, CF3, CF8, CF3M, CF8M, 4A, 5A, C95800, LCB, LCC, LC2
Valve seat	Body material, 13CR, stainless steel 304/316, monel, cemented carbide, alloy 20, copper alloy, etc.
Valve stem	A182 F6a,17-4PH，F304 F316, F51, ...

Performance Features

1. The swing check valve has a compact structure, small size, light weight and excellent sealing performance;
2. It has a wide range of applications and can be used for a variety of media;
3. The valve disc closes quickly and moves sensitively;
4. The closing impact force is small, and it is not easy to produce water hammer phenomenon, which reduces maintenance pressure and prolongs service life;
5. The flow channel is unobstructed and the fluid resistance is small.

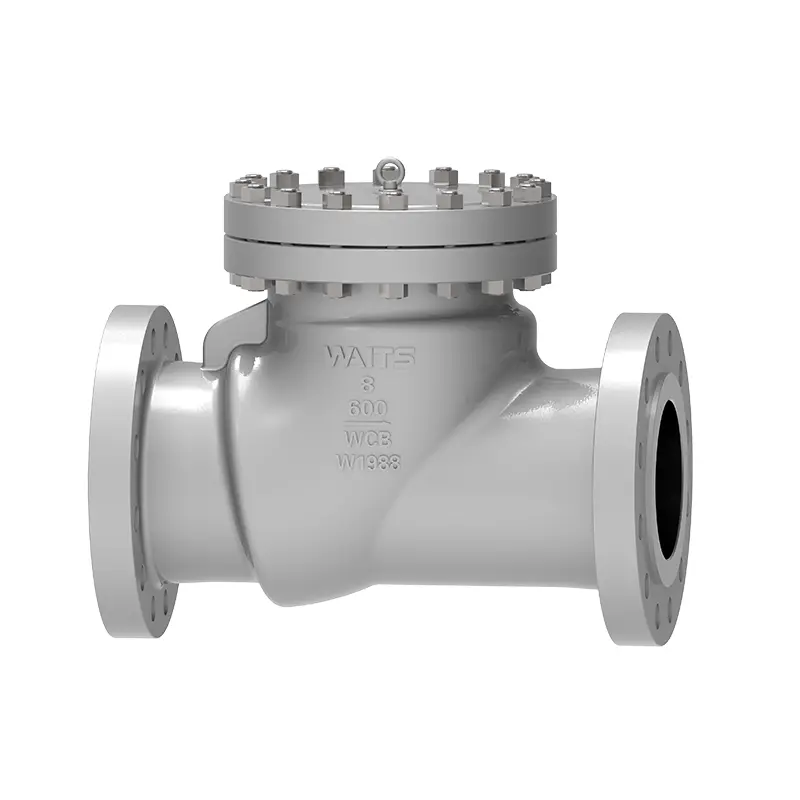

Swing Check Valve
