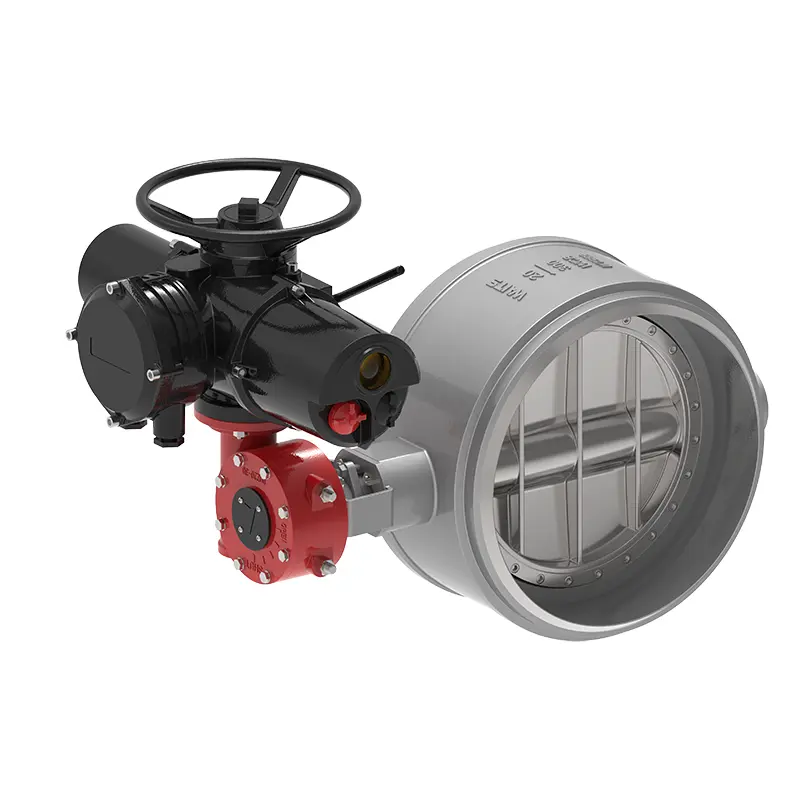

Three Eccentric Hard Seal Welded Butterfly Valve

Three eccentric hard seal welded butterfly valve is composed of valve body, butterfly plate, sealing ring, transmission mechanism and other main parts. Its structure adopts two-dimensional or three-dimensional eccentric principle design, and adopts new processing technology of elastic seal or hard and soft multi-layer seal compatibility, so that the butterfly valve can reduce torque during operation, save labor and energy. At the same time, it will not affect the overall corrosion resistance, high temperature resistance and wear resistance of the butterfly valve.
This butterfly valve has received a lot of good recognition in many industrial fields. As a large valve manufacturer, we know clearly that preferential valve prices are inseparable from a complete upstream and downstream supply chain system and excellent processing equipment. We attach great importance to this. We will increase investment in it every year so that Waits valves can always maintain reliable quality and preferential prices.

Implementation Standards

Application

Main parts materials

Performance Features

1. Unique and lightweight structure, flexible operation, labor-saving and convenient;
2. Reliable sealing, can meet various standards;
3. Good flow characteristics and adjustable function;
4. Three eccentric hard seal welded butterfly valve adopts eccentric principle, which makes the sealing surface almost zero wear and extends the service life;
5. It can be used for different media, including water, steam, oil, air and gas, etc.;
6. It is suitable for pipelines with various working conditions such as different temperatures, grades, corrosion, etc.;
7. The valve body and valve seat are connected components, and the surface layer of the valve seat seal is welded with heat-resistant and corrosion-resistant alloy materials;
8. Three eccentricities: the center line of the shaft deviates from the center line of the sealing surface, the center line of the shaft deviates slightly from the center line of the pipeline, and the center line of the valve body sealing surface (oblique cone) forms an angle of angular position with the center line of the pipeline;
9. The multi-layer sealing ring is fixed on the valve plate, which is resistant to high temperature, easy to operate, and has no friction when opening and closing. When closing, the torque of the transmission mechanism increases to compensate for the seal, which improves the three eccentric hard seal welded butterfly The sealing performance and durability of the valve;
10. The multi-layer sealing ring adopts soft and hard laminated metal sheets, which has the dual advantages of metal hard sealing and soft sealing.
