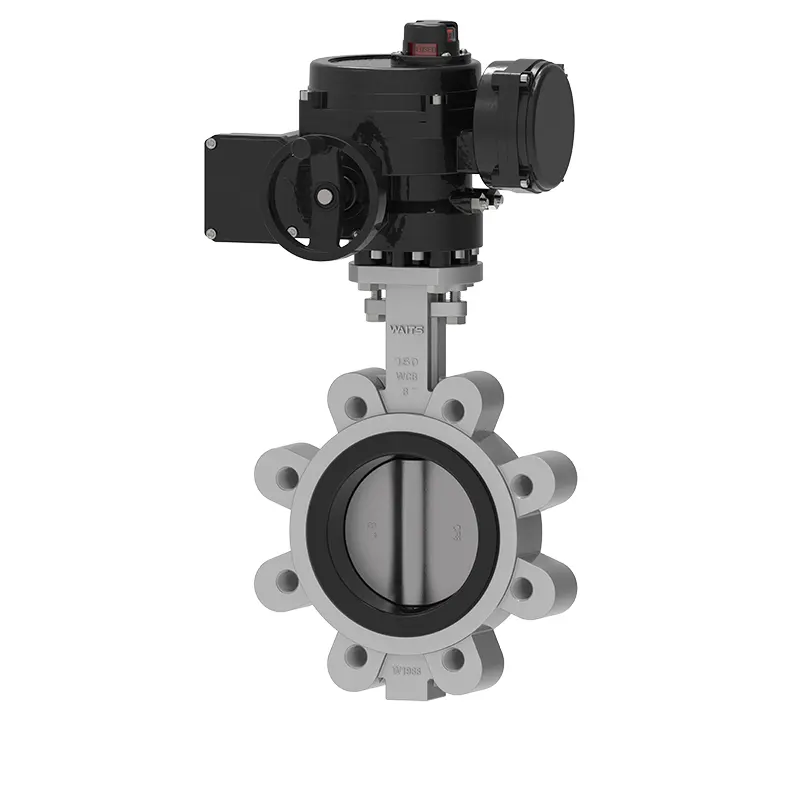

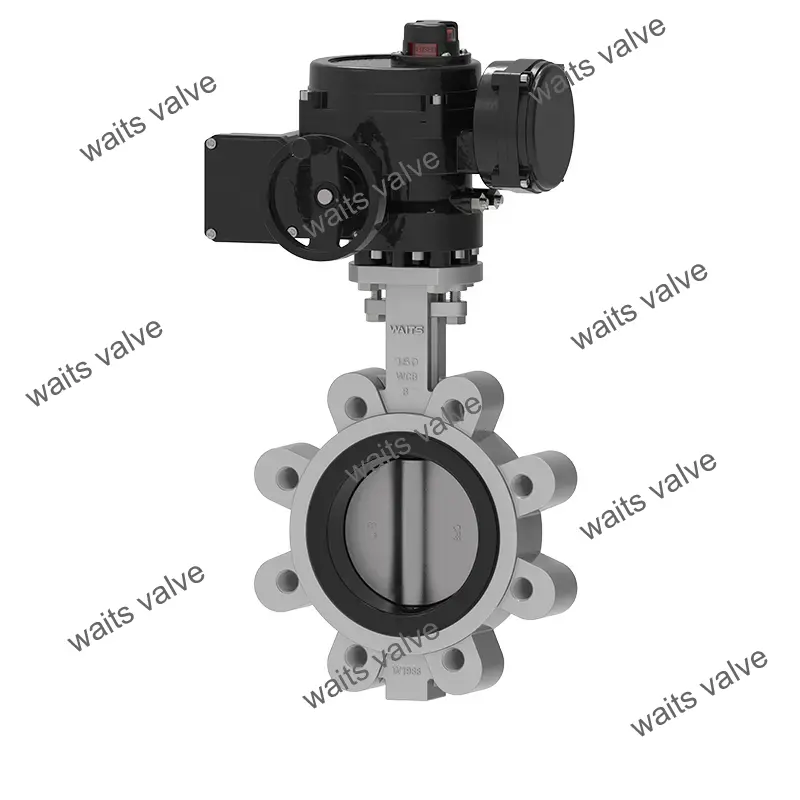

Electric Lug Soft Seated Butterfly Valve

The electric lug soft seated butterfly valve is a high-quality product of Waits, manufactured in a Chinese factory, using safe and environmentally friendly high-quality materials, and has reached the standard that can be used for food pipelines. We were originally established in the United States and later established our headquarters in Wenzhou, China, and can provide you with the first-time delivery and related service support.

Send Inquiry

Product Description

The following are some of the most worthy points in the design of electric lug soft seated butterfly valve, which have been fully considered in terms of materials, structure and performance.

1. High elasticity of valve seat rubber: The rubber content of EPDM valve seat is 50%. We attach great importance to quality, and more than 10,000 opening and closing simulations ensure that the valve is leak-free.

Other relevant performance data can be referred to as follows: Shore A hardness/degree 72±3, 200% tensile stress/Mpa≥6, tensile strength MPa≥15, elongation at break/%≥350, permanent deformation at break/%≦10, tear strength/KN.m-1≥35, compression permanent deformation (70℃*22h, compression rate 25%)/%≦20.

Moreover, our valve seat is designed with a wide edge, with a diameter of about 20mm, which has a wider contact surface with the pipeline flange than the narrow-edge valve seat, and has better sealing performance.

2. Because installing pins may cause corrosion and leakage, we use a pinless connection between the butterfly plate and the valve shaft, which makes the valve shaft easier to disassemble and facilitates the replacement of the valve seat.

3. The valve body is equipped with an anti-scattering device, which is safer.

Implementation Standards

Design Standard	EN 593 / MSS SP-67 / API 609 / ISO 5752 / BS 5155
End Standard	ANSI B16.1 CL. 125LB and B16.5 CL. 150LB DIN 2501 PN6/PN10/PN16/, EN 1092 PN6, PN10 and PN16 AS 2129 Table D and E BS 10 Table D and E MSS SP44 CL. 150LB AWWA C207 150LB ISO 2531 PN6, PN10 and PN16 ISO 7005 PN6, PN10 and PN16
Inspection & Test	API 598 ISO 5208 EN 12266
Face to Face	ISO 5752, EN 558, MSS SP67 and API 609 DIN3202
Top Flange	ISO 5211

Application

Operating Temperature	-45℃~+150℃
SIZE	2"-32" DN50-DN800 34"-80"DN850-DN2000
Working pressure / CWP	16BAR 10BAR
Shell	24BAR 15BAR
Seal	18BAR 10BAR
Air Test	6BAR 6BAR
Operating Environment	Ballast and bilge system Chemical processing Desalination plants,Drilling rigs,Drinking water Dry powder,Food and beverage,Gas plants HAVC Mining industry,Paper industry,Sand handling,Seawater,Sugar industry Thermo technical water treatment Waste water
Driving method	Hand Lever Worm Gear Electric Pneumatic
BODY	Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze
DISC	Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze
STEM	2CR13 F304 F316 F51 F53 Monel K500
SEAT	BUNA NBR EPDM VITON PTFE HEPDM Neoprene Hypalon Natural rubber
