What Are the Common Types of Check Valves Used in Industrial Applications?

In industrial pipe systems, check valves are crucial parts that guarantee unidirectional flow and stop backflow. Their operation is essential for preventing contamination, preserving system effectiveness, and safeguarding equipment. A number of variables, including fluid type, pressure, and flow conditions, influence the choice of check valve type for a given application. The most popular kinds of check valves utilized in industrial settings are examined below.

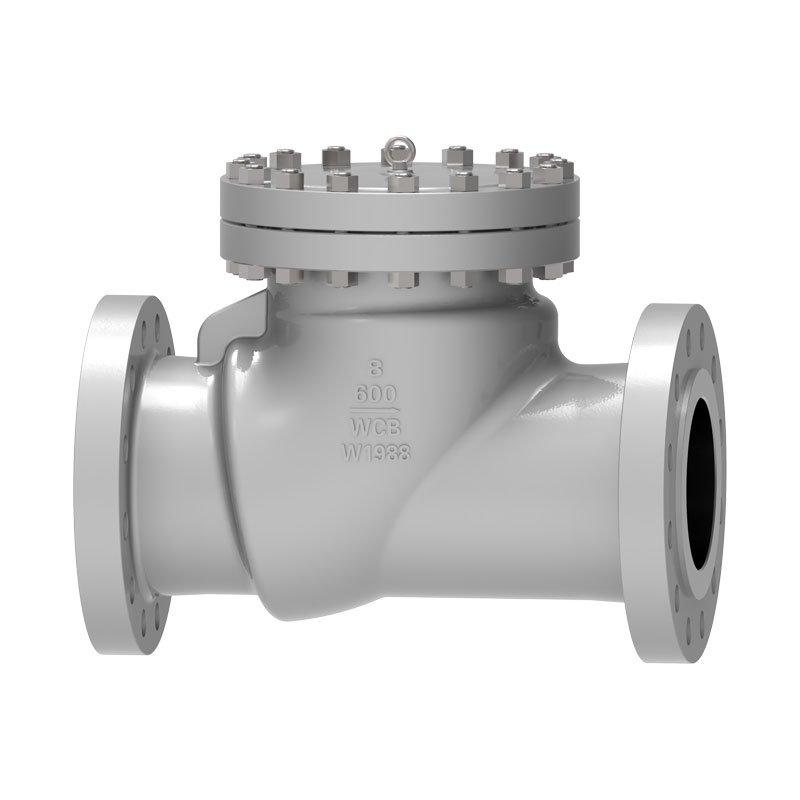

1. Swing Check Valve

How It Works:

A swing check valve features a hinged disc or flap that swings open when fluid flows in the forward direction. When the flow stops or reverses, gravity or back pressure causes the disc to swing shut, preventing backflow.

Applications:

- Water and wastewater systems

- Oil and gas pipelines

- Pumping systems

Advantages:

- Simple design

- Suitable for low-pressure systems

- Minimal pressure drop during operation

2. Ball Check Valve

How It Works:

A ball check valve uses a spherical ball to block reverse flow. When fluid flows in the desired direction, the ball moves away from the valve seat. When flow stops or reverses, the ball returns to the seat, sealing the valve.

Applications:

- Chemical processing

- Food and beverage industries

- Slurry handling systems

Advantages:

- Compact design

- Effective in handling viscous fluids or slurry

- Low maintenance requirements

3. Lift Check Valve

How It Works:

In a lift check valve, the disc is lifted vertically off the seat by forward fluid flow. When flow reverses, the disc returns to the seat, closing the valve.

Applications:

- Steam systems

- High-pressure pipelines

- Gas applications

Advantages:

- Ideal for high-pressure applications

- Provides a tight seal against backflow

- Suitable for horizontal and vertical installations

4. Diaphragm Check Valve

How It Works:

A flexible diaphragm acts as a sealing mechanism in this valve. Forward flow lifts the diaphragm, allowing fluid to pass, while backflow presses it against the valve seat to prevent reverse flow.

Applications:

- Pharmaceutical industries

- Food processing

- Corrosive fluid systems

Advantages:

- Excellent for handling sensitive or corrosive fluids

- Provides a contamination-free seal

- Quiet operation

5. Duckbill Check Valve

How It Works:

Shaped like a duck's bill, this valve opens when fluid pressure pushes against it and closes tightly under back pressure.

Applications:

- Marine and wastewater systems

- Stormwater management

- Outfall systems

Advantages:

- Flexible and lightweight

- Non-mechanical operation

- Resistant to clogging

6. Wafer Check Valve

How It Works:

This compact valve fits between two pipe flanges and has a disc that swings or lifts to allow forward flow. When flow reverses, the disc closes, preventing backflow.

Applications:

- Space-constrained systems

- HVAC systems

- Chemical processing

Advantages:

- Lightweight and compact design

- Minimal pressure drop

- Easy to install

7. Silent Check Valve

How It Works:

Silent check valves use a spring-loaded mechanism to close the valve rapidly when flow stops, preventing water hammer (a surge in pressure caused by sudden flow reversal).

Applications:

- HVAC systems

- Water supply networks

- Pumping systems

Advantages:

- Eliminates water hammer

- Quiet operation

- Durable and efficient

Selecting the Appropriate Check Valve

Take into account the following elements when choosing a check valve for your application:

Make that the fluid type is compatible with the material of the valve.

Select a valve that is capable of managing the system's pressures and flow rates.

- Installation Space: Wafer check valves and other small choices are perfect for confined spaces.

Maintenance Requirements: For important systems, choose valves that require less upkeep.

In conclusion

In industrial applications, check valves are essential because they provide unidirectional, smooth flow and stop backflow. Every form of check valve, from swing and ball to diaphragm and duckbill types, has special advantages that are appropriate for particular systems and sectors. Selecting the best valve to improve system performance and dependability can be made easier if you are aware of its features.
