How Does the Design of a Ball Valve Ensure a Tight Seal?

Ball valves are renowned for their ability to provide a reliable and tight seal, making them indispensable in a wide range of industrial and residential applications. Their unique design not only ensures efficient flow control but also minimizes the risk of leaks. Let’s delve into how the design of a ball valve achieves this level of sealing precision.

Key Components of a Ball Valve Design

To understand the sealing mechanism, it’s important to explore the key components of a ball valve:

- The Ball: A spherical component with a hole (bore) through its center, allowing fluid to flow when aligned with the pipeline.

- Seats: Typically made of soft materials like Teflon (PTFE) or elastomers, seats provide the sealing surface for the ball.

- Body: The valve housing that contains and protects the internal components.

- Stem: Connects the ball to the actuator or handle, enabling rotation.

- Seals and Gaskets: Ensure no leakage occurs around the stem or between valve components.

How the Ball Valve Achieves a Tight Seal

1. Precision Machining of the Ball

The ball in a ball valve is precisely machined to achieve a smooth and uniform surface. This ensures that when the valve is closed, the ball’s surface aligns perfectly with the seats, creating a tight seal.

- Full Contact: The spherical shape ensures full contact with the seats, eliminating gaps.

- Low Torque Requirement: A well-machined ball reduces friction, allowing the valve to seal tightly with minimal effort.

2. Seating Mechanism

The seats in a ball valve are designed to compress slightly when the valve is closed, creating a tight seal.

- Soft Seats: Materials like PTFE deform slightly under pressure, filling any minor irregularities on the ball surface.

- Spring-Loaded Seats: In some designs, springs push the seats against the ball, maintaining a seal even under fluctuating pressures.

3. Floating Ball Design

Many ball valves feature a floating ball design, where the ball is not fixed but held in place by the seats.

- Self-Adjustment: The floating ball is pushed against the downstream seat by the pressure of the fluid, enhancing the seal.

- Effective Under Pressure: This design ensures a tight seal even in high-pressure systems.

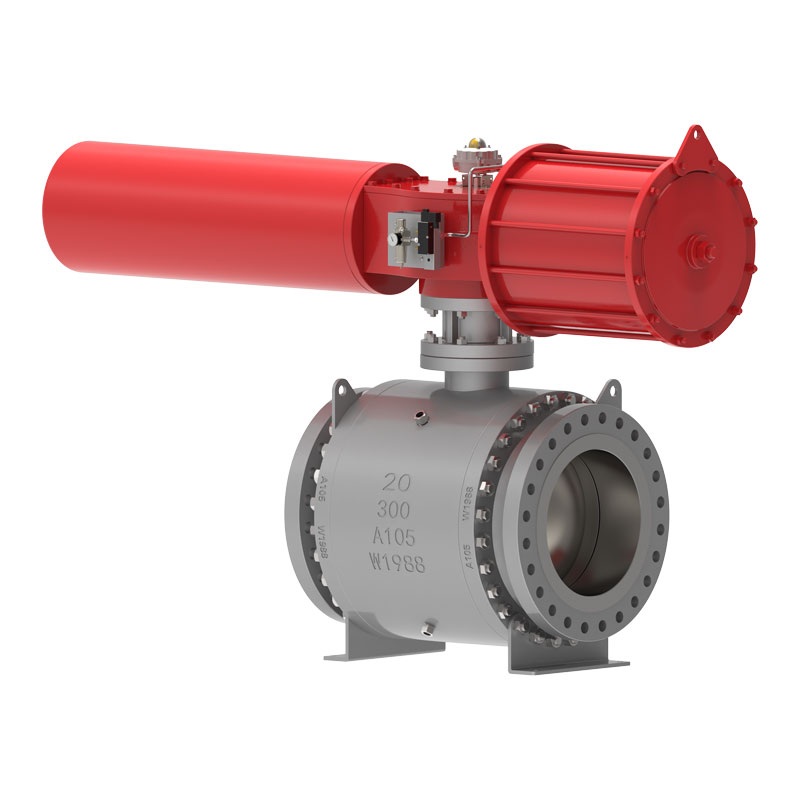

4. Trunnion-Mounted Ball Design

In larger or high-pressure ball valves, a trunnion-mounted design is used. The ball is anchored at the top and bottom, reducing stress on the seats.

- Reduced Wear: The fixed ball minimizes seat deformation, ensuring a consistent seal over time.

- Dual Sealing: Both upstream and downstream seats maintain contact with the ball, providing an added layer of sealing.

5. Stem Sealing

To prevent leaks around the stem, ball valves incorporate:

- O-Rings and Packing: Flexible materials that form a seal around the stem.

- Anti-Blowout Design: Ensures the stem remains securely in place, maintaining the seal even under extreme conditions.

Advantages of the Tight Seal in Ball Valves

- Leak Prevention: Ensures no loss of fluid, enhancing efficiency and safety.

- Versatility: Handles a variety of media, including gases, liquids, and slurries.

- Durability: Resistant to wear and tear, maintaining a tight seal over extended periods.

Applications Benefiting from Tight Seals

Ball valves’ ability to provide a tight seal makes them ideal for:

- High-pressure pipelines.

- Hazardous or corrosive media transport.

- Critical applications in industries like oil and gas, chemical processing, and pharmaceuticals.
